ES-K15 Camera — Setup & Usage

Step-by-step instructions for the ES-K15 screen-free digital camera. Each step includes an illustration. If you still need help, contact support@oiktech.com.

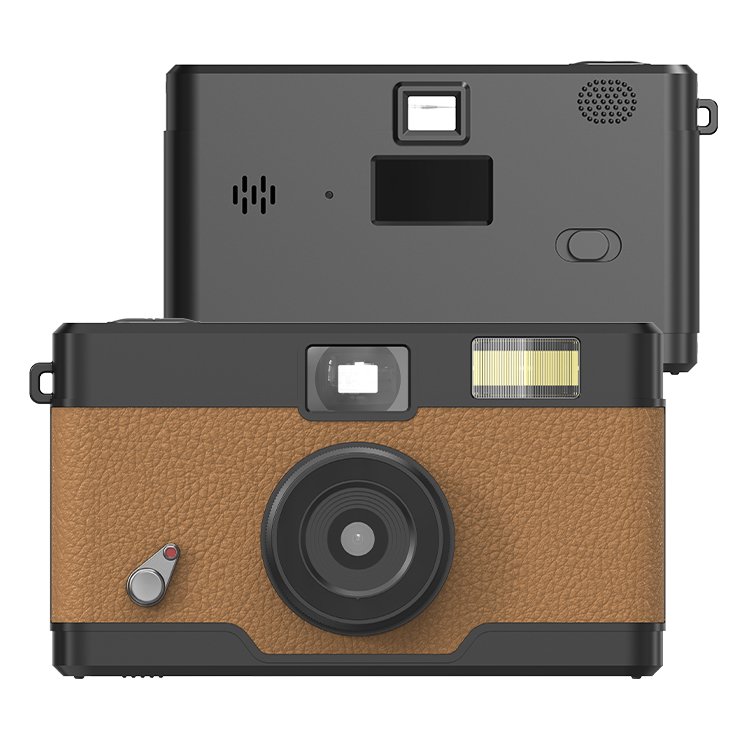

ES-K15 screen-free retro digital camera

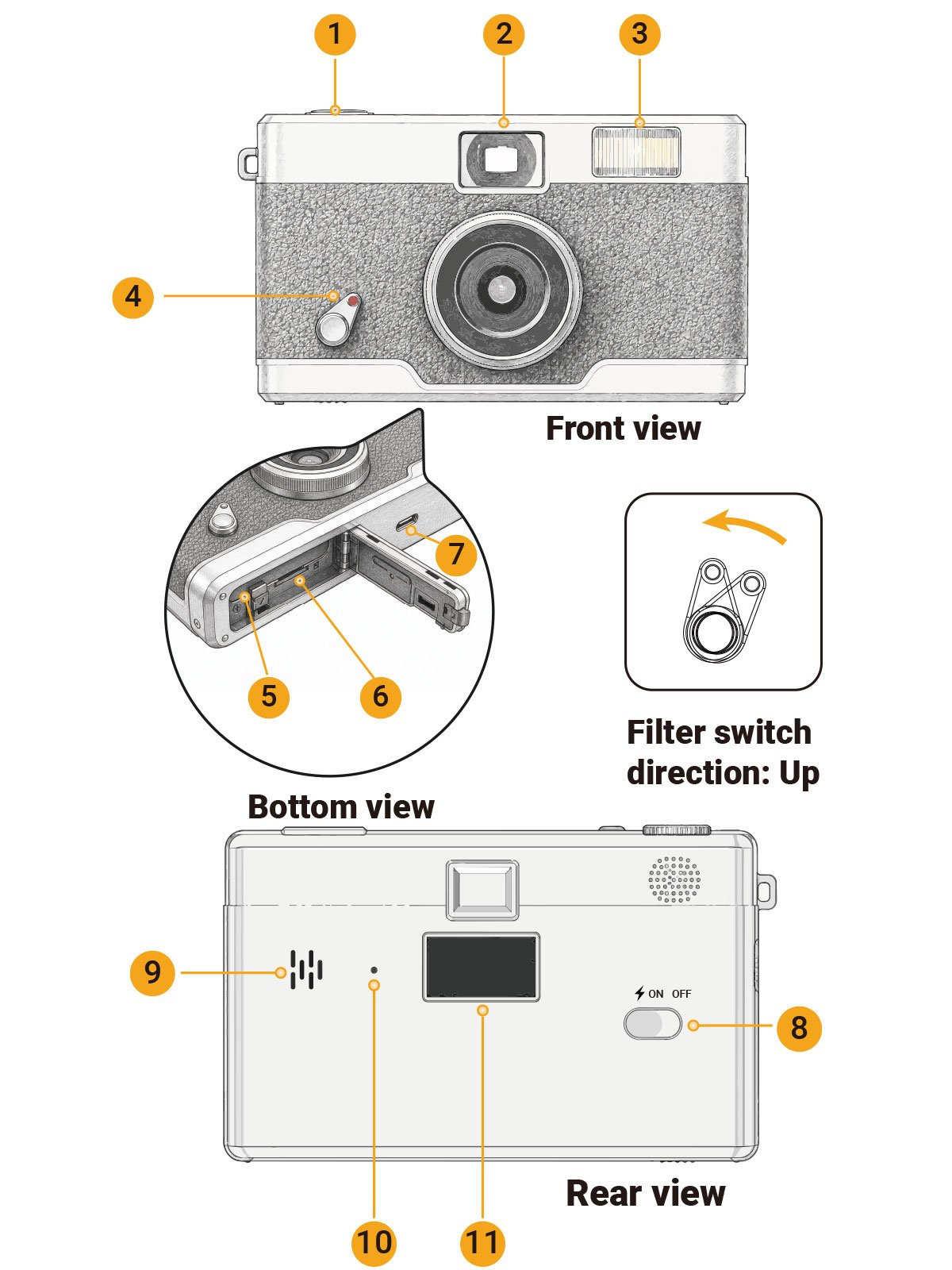

Know Your Camera

What each button and part does.

ES-K15 camera — front view

Front & Bottom

1Shutter ButtonPress to take a photo
2ViewfinderLook through to frame your shot
3FlashBuilt-in flash; enable with the ⚡ power mode
4Filter SwitchPush upward to cycle filters (NORMAL → B&W → RETRO → COOL)
5BatteryRemovable BL-5B lithium battery (750mAh)
6Micro SD Card SlotBottom of the camera; supports up to 128GB

Rear & Sides

7Type-C PortCharge the battery and transfer photos
8Power SwitchSlide between OFF · ON · ⚡ (flash)
9BuzzerBeeps to confirm operations
10Indicator LightCharging status: green = charging, off = fully charged
11Status Screen0.96″ photo-counter / status display (no photo preview)

1. Get Started

Set up the battery, memory card and power before taking photos.

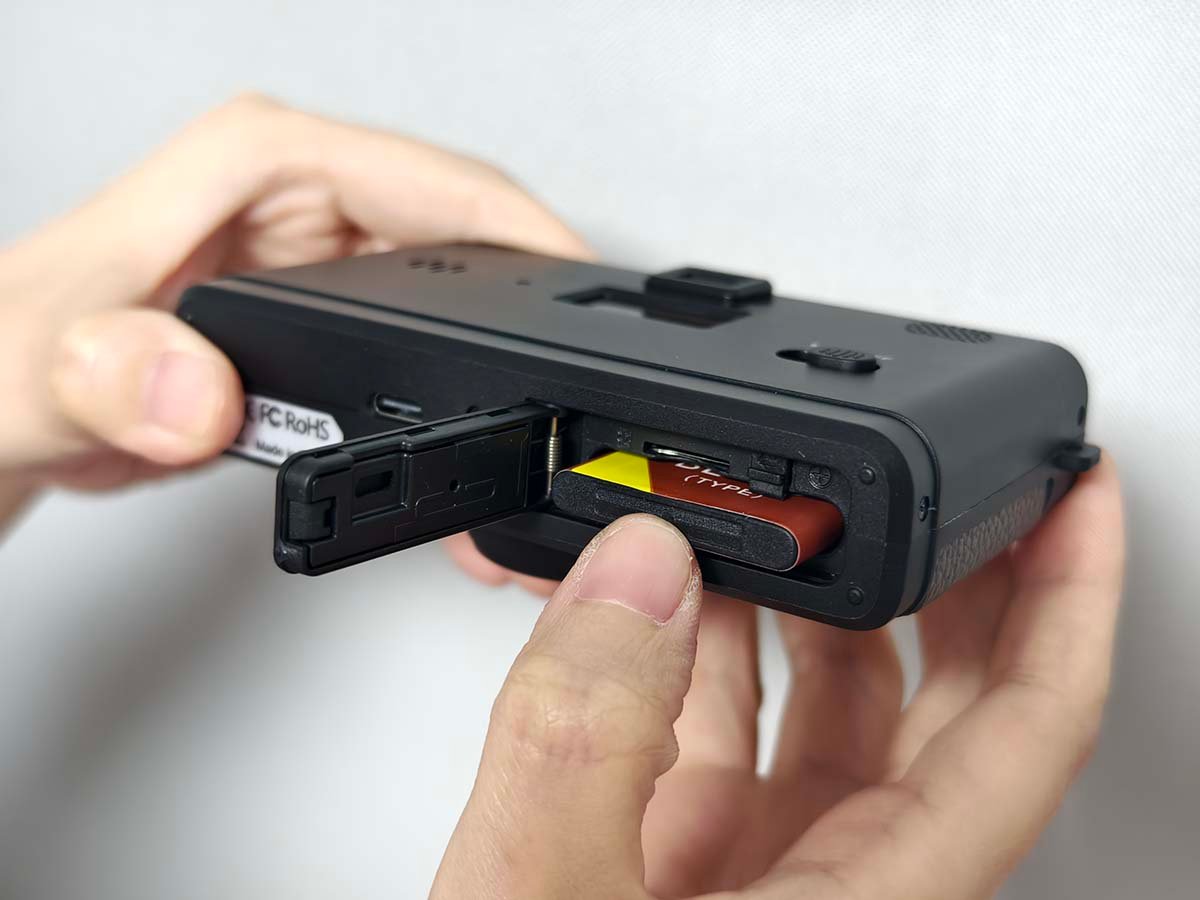

1.1Insert the battery & microSD card

  1. Open the battery compartment on the bottom of the camera.
  2. Insert the BL-5B battery, matching the + / − orientation.
  3. Insert a microSD card (up to 128GB) into the card slot until it clicks.

A microSD card is not included. Format a new card before first use — see 1.4.

Inserting the battery and microSD card

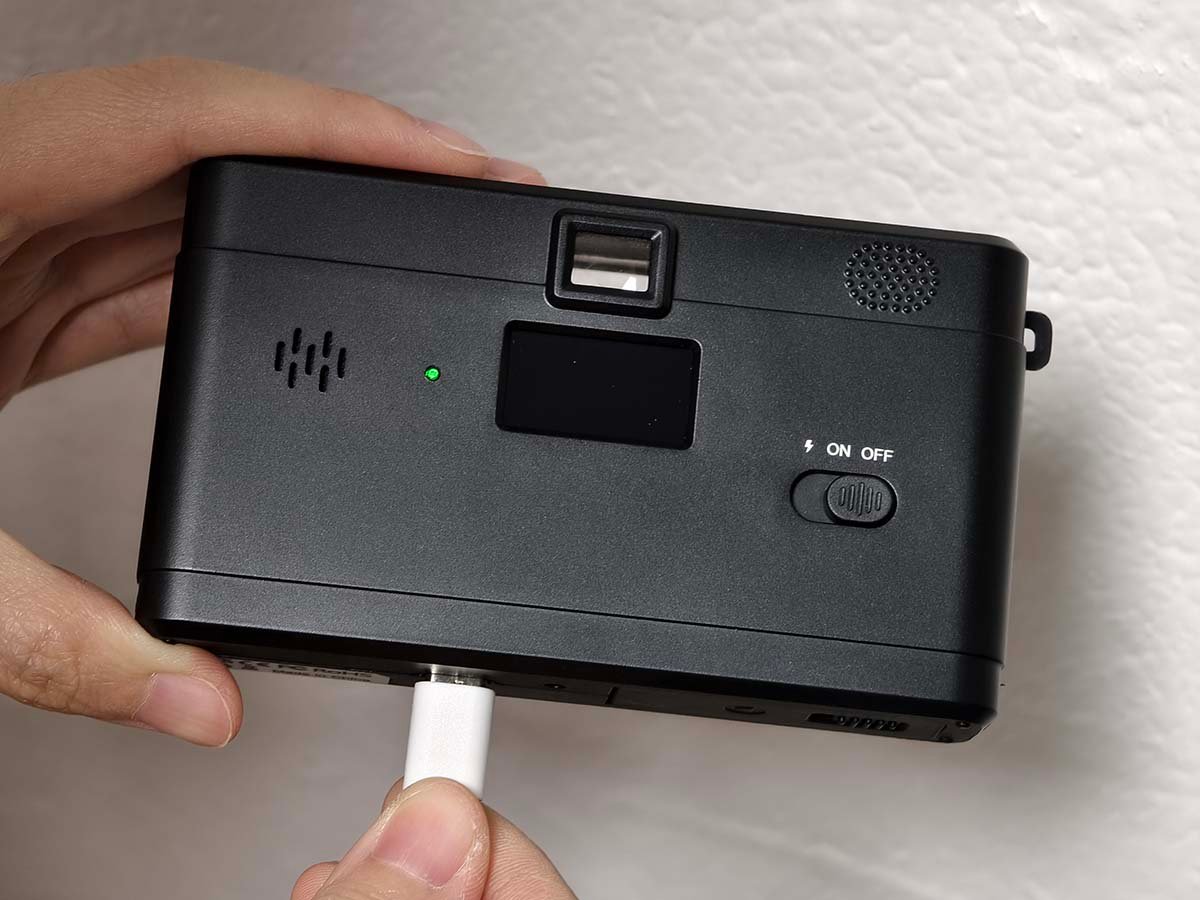

1.2Charge the camera

  1. Connect the included USB-C cable to the Type-C port on the camera.
  2. Plug the other end into a USB charger or computer.
  3. Wait for the indicator to turn off — fully charged.

Indicator: green = charging, off = fully charged.

Charging the camera via Type-C

1.3Power on / off

  1. Slide the Power Switch to ON — power on, flash off.
  2. Slide to ⚡ — power on with forced flash.
  3. Slide to OFF to turn the camera off.

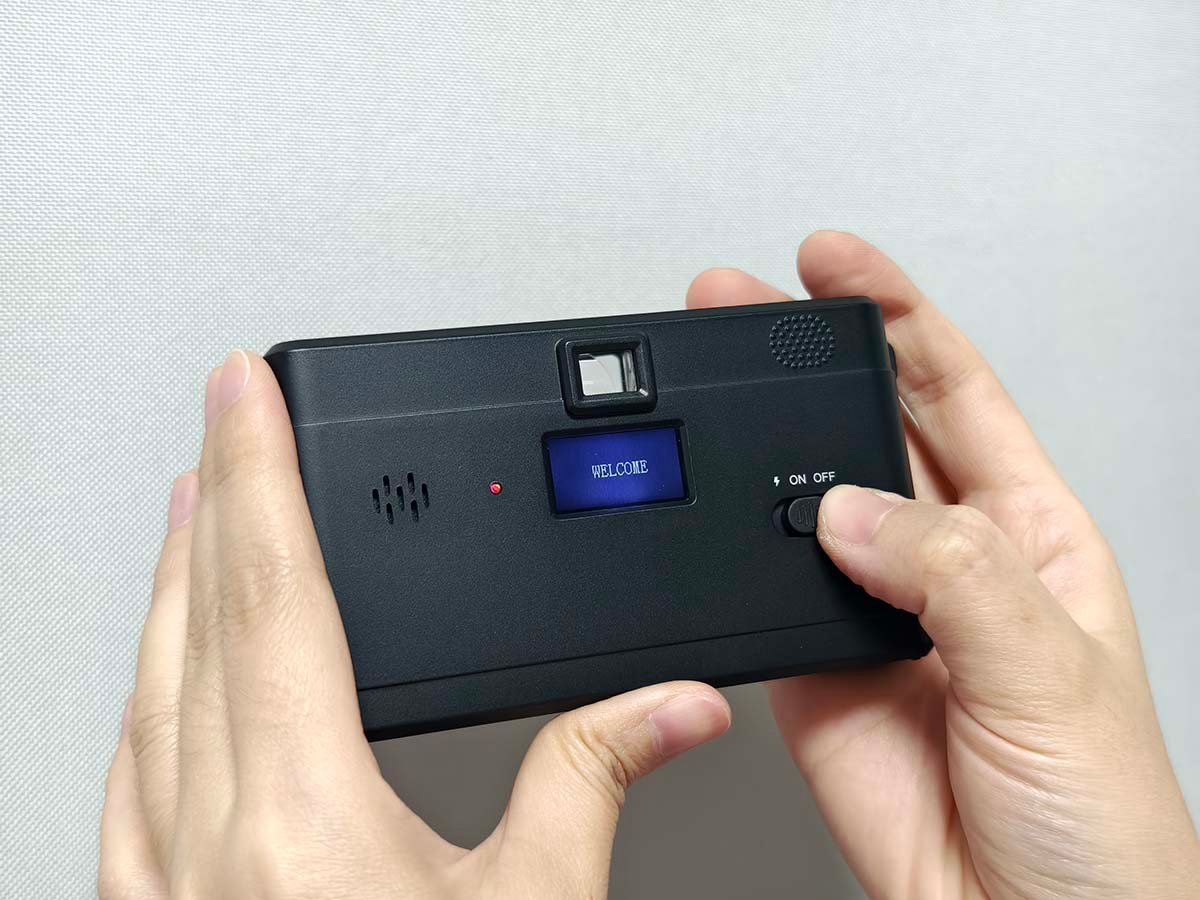

Power switch: OFF, ON, flash

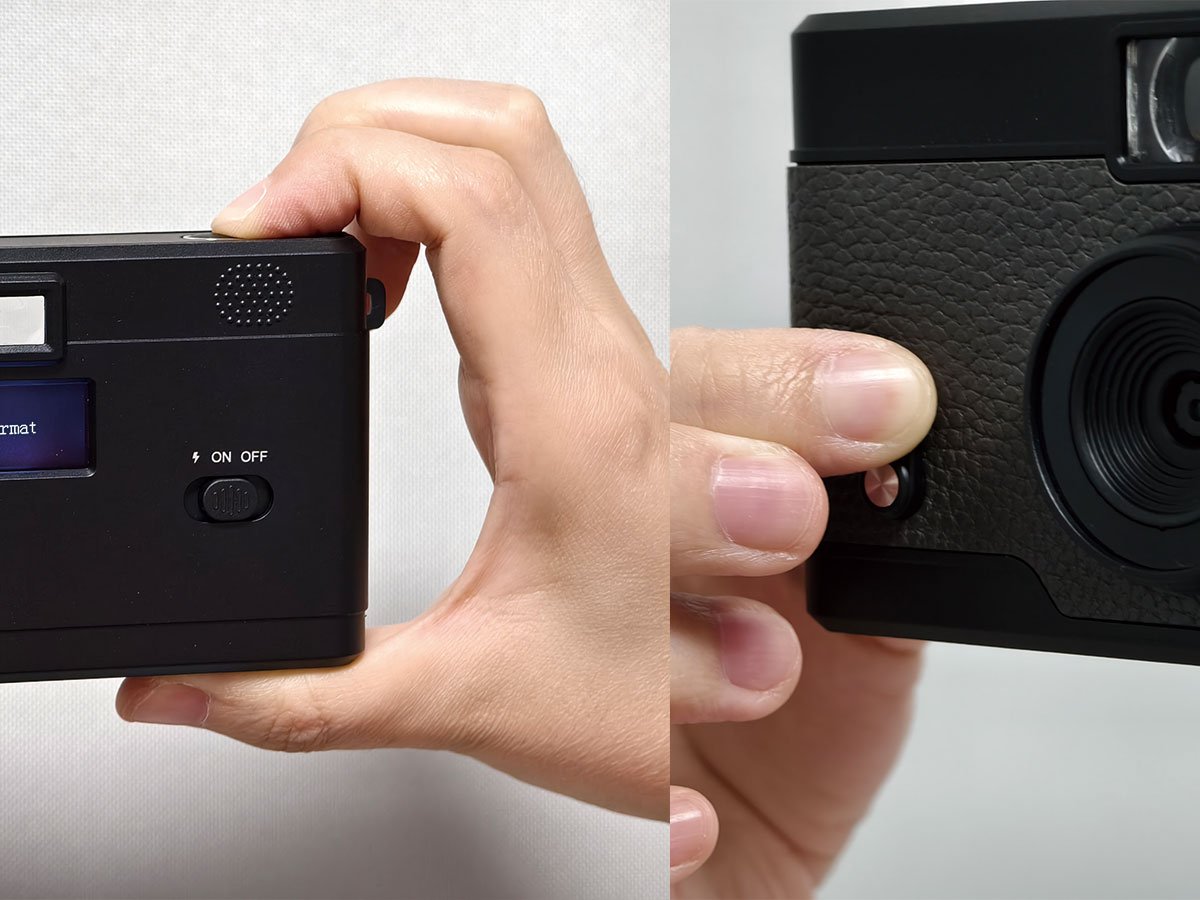

1.4Format the memory card (first use)

  1. Turn the camera ON.
  2. Hold the Shutter Button for 8 seconds until FORMAT appears.
  3. Within 2 seconds, push the Filter Switch upward to confirm.

Formatting deletes all data on the card. Do this only with a new card or a card you want to erase.

Formatting the memory card

2. Take a Photo

The camera has no preview screen — frame the shot through the viewfinder.

2.1Take a photo

  1. Power on the camera (ON or ⚡).
  2. Look through the viewfinder and frame your subject.
  3. Hold the camera steady.
  4. Press the Shutter Button. The photo counter on the status screen advances.

The fixed-focus lens is sharpest from about 1 m (3.3 ft) to infinity. Keep the subject at least 1 m away.

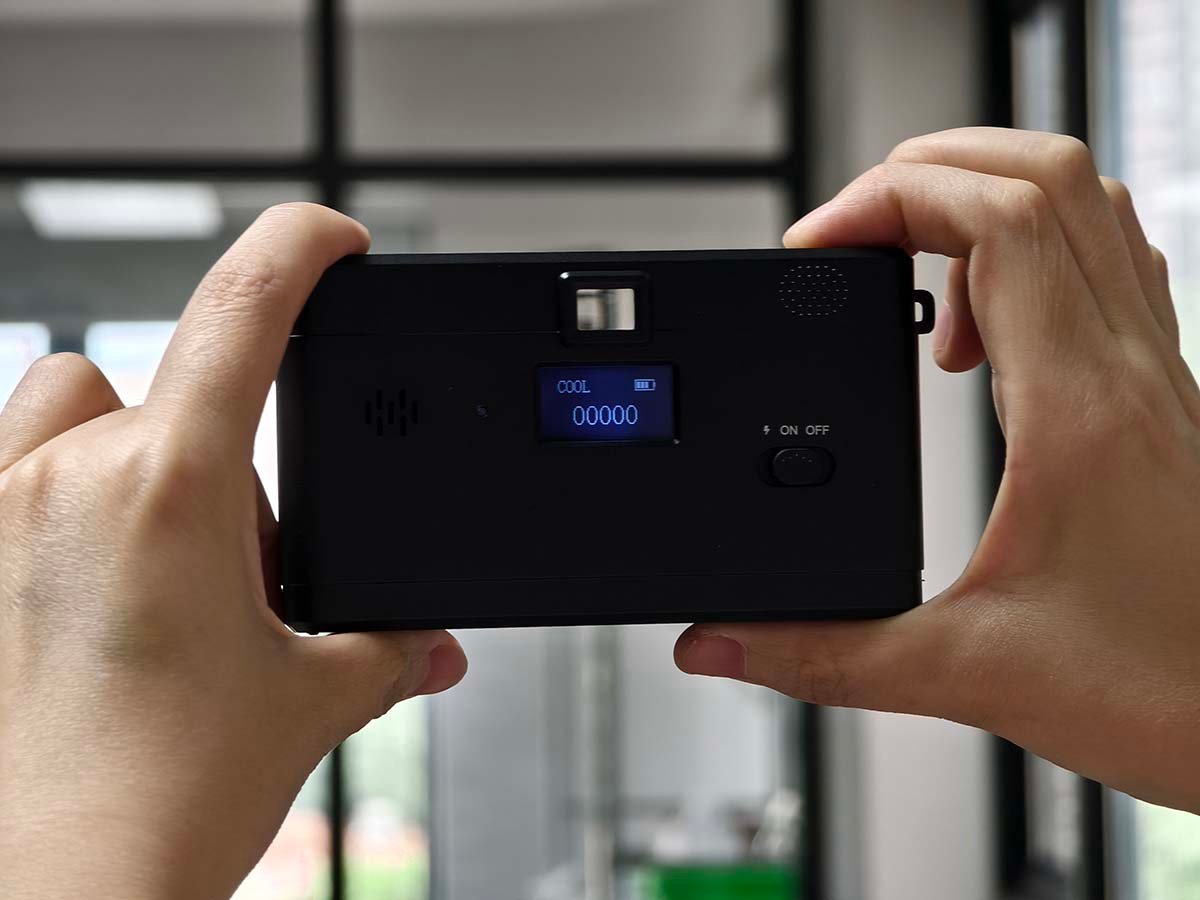

Taking a photo through the viewfinder

3. Filters & Settings

Built-in color effects and the date stamp.

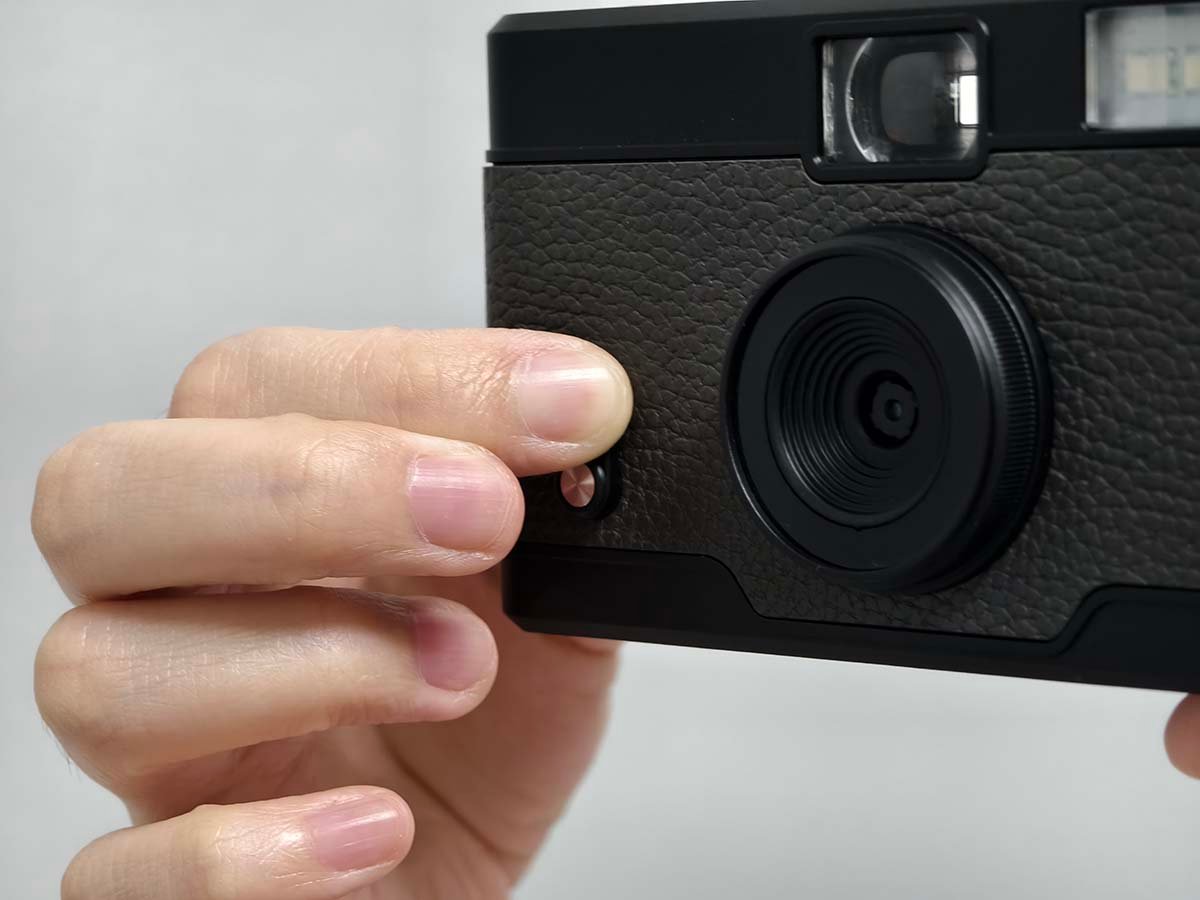

3.1Change the filter

  1. With the camera on, push the Filter Switch upward.
  2. Each push cycles to the next filter:

NORMAL → B&W → RETRO → COOL

NORMAL = original color · B&W = black & white · RETRO = warm brown · COOL = blue tone.

Changing the color filter

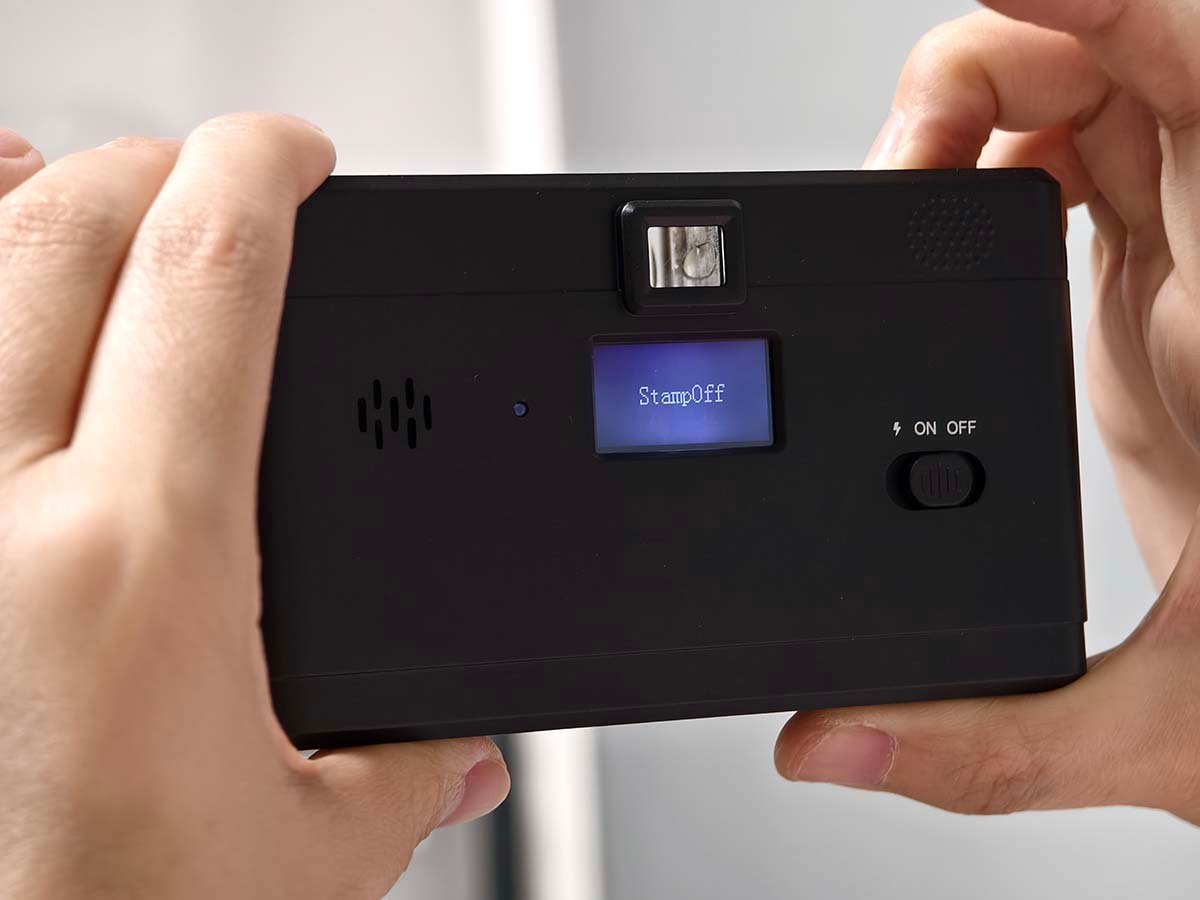

3.2Turn the date / time stamp on or off

  1. Press and hold the Shutter Button for about 3 seconds, then release.
  2. The status screen shows STAMP ON or STAMP OFF.
Turning the date stamp on or off

3.3Set the date & time

  1. Turn the camera ON.
  2. Press and hold the Shutter Button + Filter Switch together for 8 seconds to enter setup.
  3. Push the Filter Switch upward to adjust the value.
  4. Press the Shutter Button to move to the next field: Year → Month → Day → Hour → Minute.

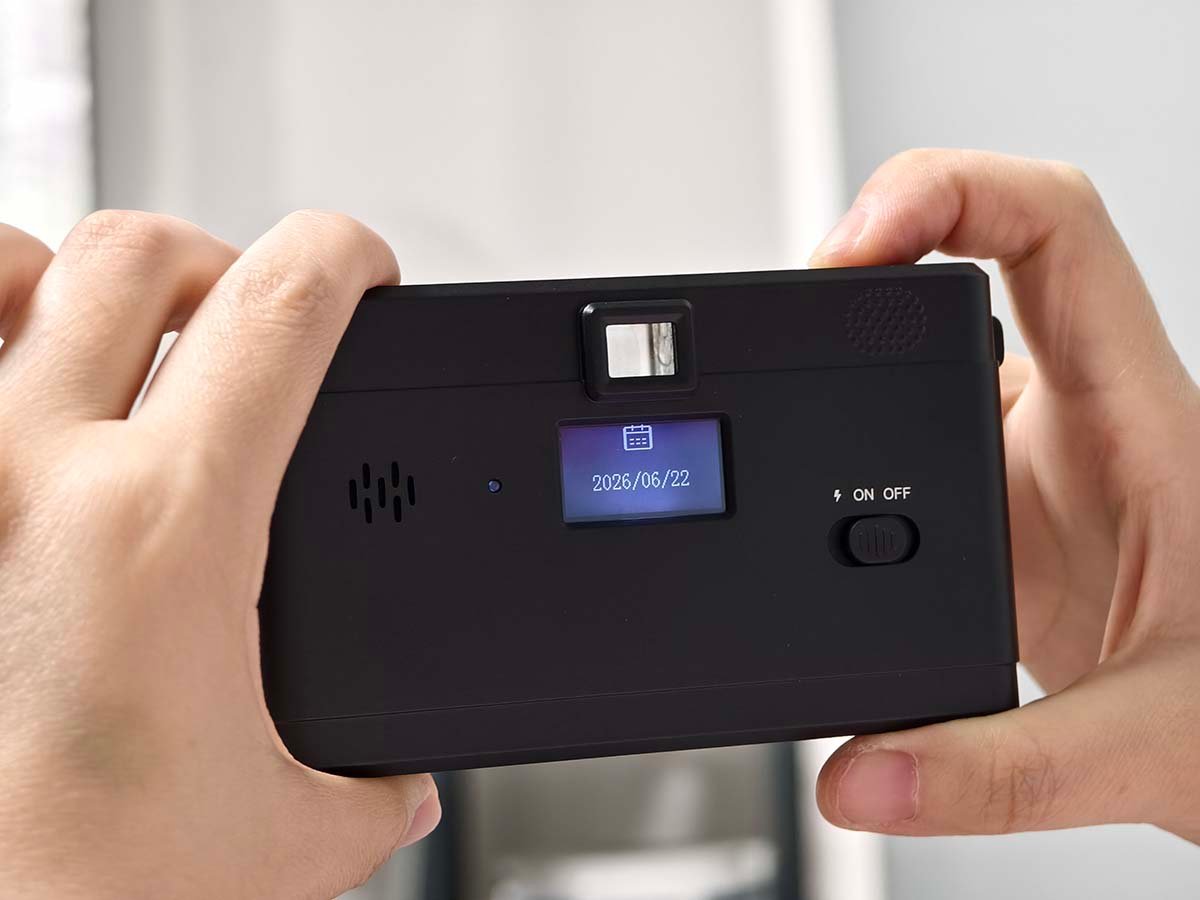

Setting the date and time

4. Transfer Photos

Move your photos to a computer or phone.

4.1Transfer to a computer

  1. Connect the camera to the computer with the included Type-C USB-C cable.
  2. Power the camera ON. It appears as a removable drive.
  3. Open the drive and copy your photos to the computer.

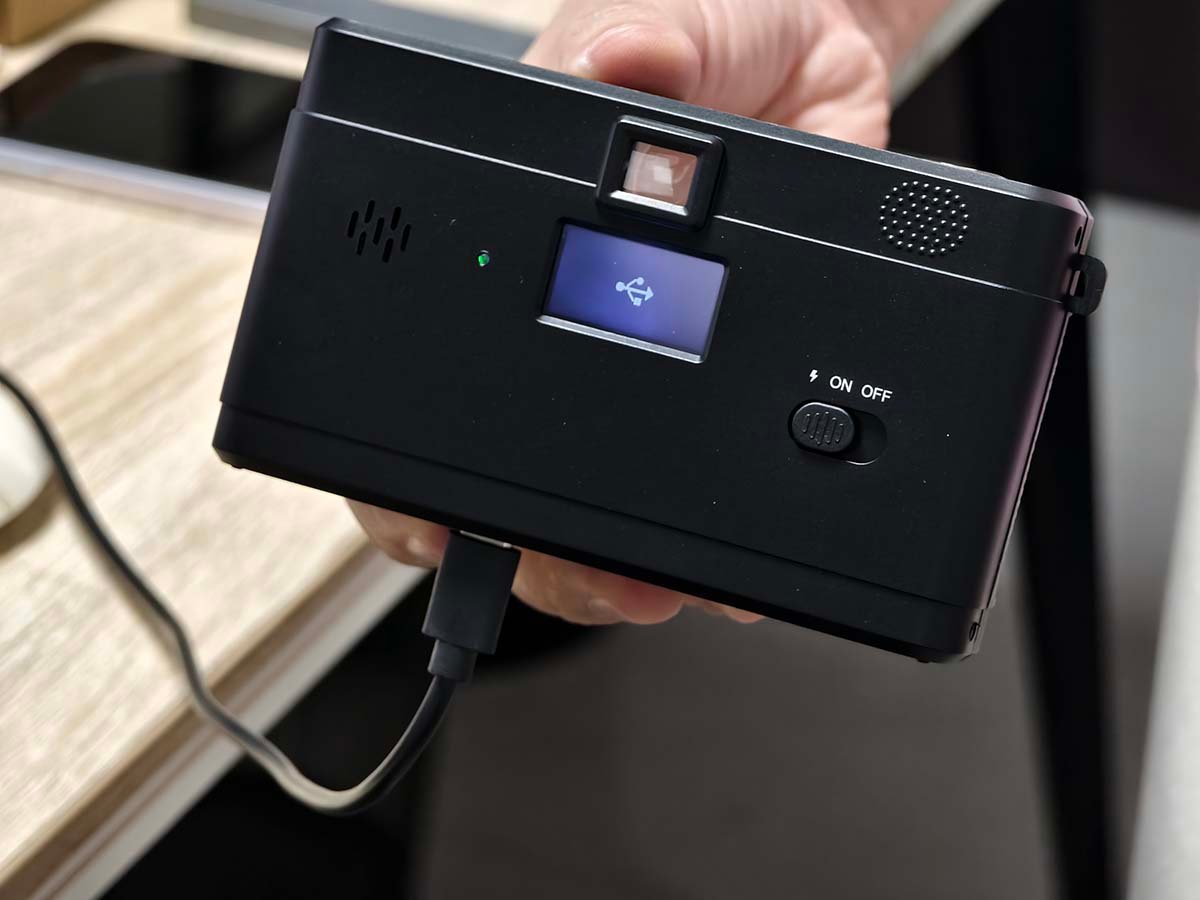

Transferring photos to a computer

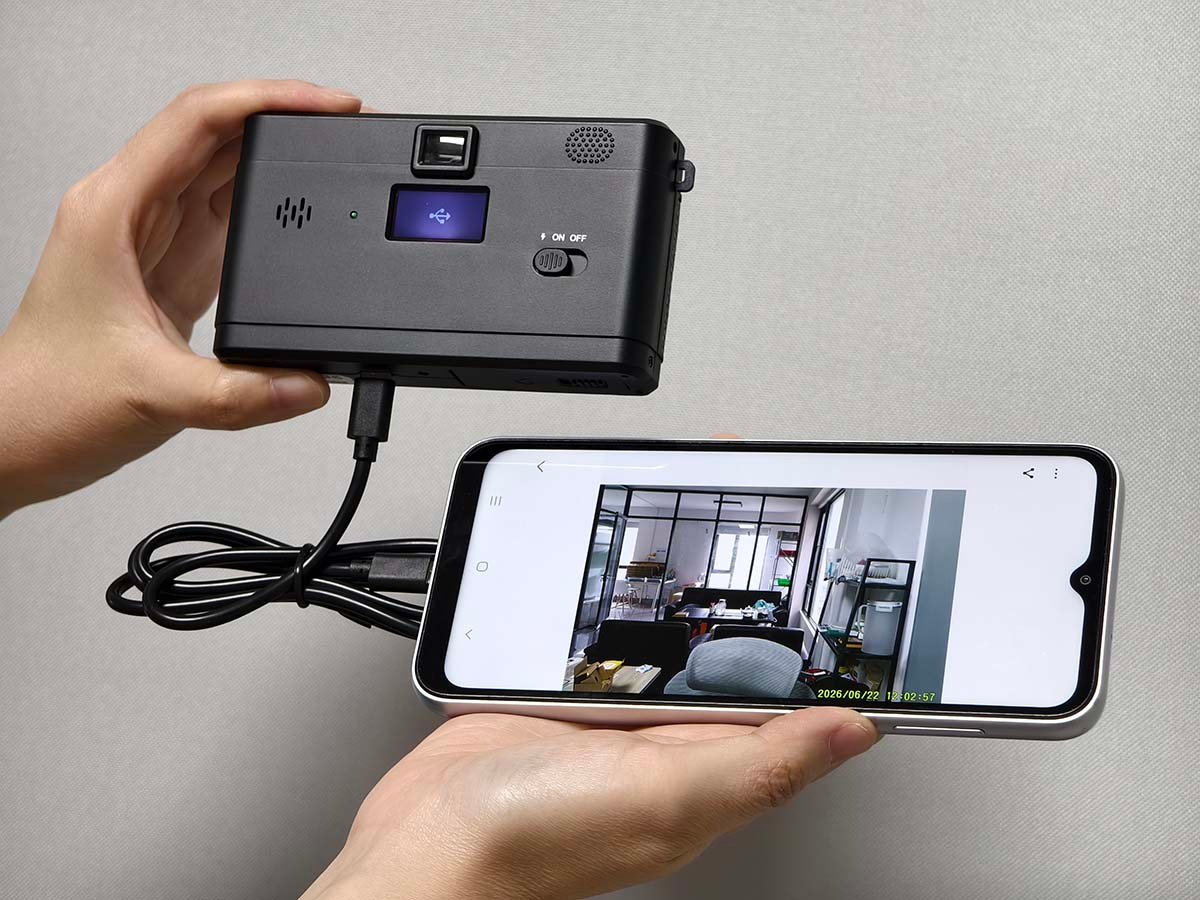

4.2Transfer to a phone

  1. Connect with a USB-C to USB-C cable, or
  2. Remove the microSD card and use a card reader / OTG adapter.
  3. Copy the photos to your phone.
Transferring photos to a phone

5. Specifications

ES-K15 (K15) — Retro Screen-Free Camera

Available ColorsBlack / Brown
Sensor8MP CMOS sensor
LensFixed lens, F/2.2, f=3.7mm
Focusing RangeFixed, 1.0 m ~ infinity
Photo FormatJPEG, 8M resolution
Image StabilizationEIS
Photo ModesOriginal / B&W / Retro / Cool
StoragemicroSD (TF) card, max 128GB
Screen0.96″ status display (photo count), no preview screen
FlashBuilt-in flash (Xenon or LED, optional variants)
PortType-C (charging & data)
BatteryRemovable lithium battery BL-5B, 750mAh
Dimensions115 × 66 × 35 mm
Weight110 g (with battery)

6. FAQ

Common questions and troubleshooting.

How do I format a new memory card?
Turn the camera ON, hold the Shutter Button for 8 seconds until FORMAT appears, then within 2 seconds push the Filter Switch upward to confirm.
Why can’t I preview my photos on the camera?
The K15 has no preview screen by design. The small 0.96″ screen only shows the photo count and settings. Transfer photos to a computer or phone to review them.
Why won’t the camera turn on?
Check the battery: insert the BL-5B battery with the correct orientation, or charge it via the Type-C port until the indicator turns off. After an empty battery, allow a few minutes of charging before powering on.
Why don’t my photos get saved?
Make sure a formatted microSD card is inserted. The photo counter advances with each shot; if it does not, check the card.
My photos look blurry. What should I do?
Keep the subject at least 1 m (3.3 ft) away (fixed-focus lens), hold the camera steady with both hands, and pause briefly after pressing the shutter.
Is the camera waterproof?
No. Keep the camera dry. Water damage is not covered by the warranty.

7. Warranty & Contact

1-year warranty covering manufacturing defects from the date of purchase. It does not cover damage from misuse, drops, water, or unauthorized repair.

Support Email

support@oiktech.com

Business Hours

Monday – Friday: 9:00 AM – 6:00 PM (PST)
Saturday – Sunday: Closed
